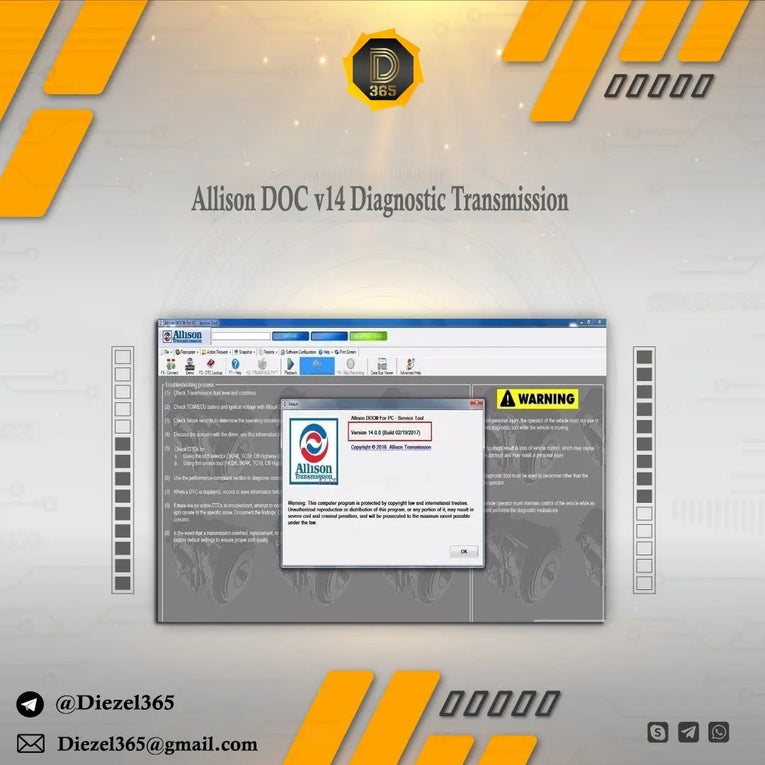

Allison DOC v14 Diagnostic Transmission





DESCRIPTION

Update: 04.2017
Size: 1.76 Gb
Region: All region
Type: Diagnostic Transmission
Language: English, Spanish, Russian, French, Japanese
OS: Win Xp, Win 7, Win 8, win 10 (Recommended Win 7)
Installation: Multiple PCs
Version: v14
High speed download link



The Allison DOC (Diagnostic Optimized Connection) For PC–Service Tool is a diagnostic system designed for use with Allison’s 3000/4000 Product Families transmissions, 1000/2000 Product Families transmissions, and transmissions using CEC3/CEC2/CEC1 controls.

Current Version: 14.0.0 - See below for details.

New! Version 14.0.0 has these exciting new features:

The Universal Allison DOC® V14.0.0 update includes the following new features/functions:

Adds support for 1/2/3/4000 5th Gen Controller and TC10 MY16 (B/C/D 161) changes

Adds support for Off-Highway CEC5 5th Gen Controller

Adds support for Windows 10 Operating System

Universal Allison DOC® Features:

Universal Allison DOC® Product combines DOC For PC, DOC For PC H 40/50 EP and DOC For Fleets

A valid license is necessary to enable each product offering

The Allison DOC® (Diagnostic Optimized Connection) For PC–Service Tool is a diagnostic system designed for use with Allison’s 3000/4000 Product Families transmissions, 1000/2000 Product Families transmissions, TC10 Product Families transmissions, and transmissions using CEC5/CEC3/CEC2/CEC1 controls.

Allison DOC® For PC–Service Tool performs the following:

Monitors 3000/4000 Product Families Transmission Control Module (TCM) data

Monitors 1000/2000 Product Families Transmission Control Module (TCM) data

Monitors CEC2 and CEC3 (Off-Highway) data

Monitors TC10 data

Monitors CEC (ATEC) Electronic Control Units (ECU) data using a proprietary protocol and the Noregon Wireless/USB Translator - All Allison Products device and Nexiq USB-Link™

Displays multiple transmission parameters

Displays a graphical instrument panel with analog and digital gauges

Displays a graphical strip chart

Records and plays back diagnostic sessions

Prints diagnostic reports

Reprograms selected TCM parameters (requires completion of Allison Transmission training)

Allison DOC® For PC—Service Tool provides the following features:

Security measures to control reprogramming TCM/ECU parameters

Integrated Help with training videos

Diagnostic Trouble Code information with a direct link to Troubleshooting Manuals for CEC 2, 1000/2000 Product Families, 3000/4000 Product Families, CEC3 Product Families, and TC10 Product Families.

A demo mode using prerecorded data

SmartConnect for detecting the PC-to-vehicle translation device and communication link

Communication troubleshooting wizard for those cases where the tool is unable to connect to a control module

Allison DOC® For PC—Service Tool is compliant with applicable TMC Recommended Practices, SAE Standards, and CE Standards

Allison DOC® For PC—Service Tool is RP1210A compliant

Operating System and PC Requirements:

Microsoft® Windows 7®, Windows 8®, Windows 10®

20 GB Hard Drive (40 GB or greater recommended)

3 GB free hard drive space required to install the program (after software installation, the operating system requires sufficient free hard disk space to run the program)

Operating System

Recommended CPU

Recommended RAM

Windows 7

2.0 GHz or Faster

4 GB or Greater

Windows 8

2.0 GHz or Faster

4 GB or Greater

Windows 10

2.0 GHz or Faster

4 GB or Greater

Monitor capable of supporting a resolution of 1280x768 or higher recommended

DVD-ROM or USB port depending on installation media

Full administrative privileges are required to install, use, and update the Allison DOC® For PC–Service Tool

Internet broadband connection capability (Internet Explorer® 8 or greater) for activation/reactivation, receiving updates and file downloads
